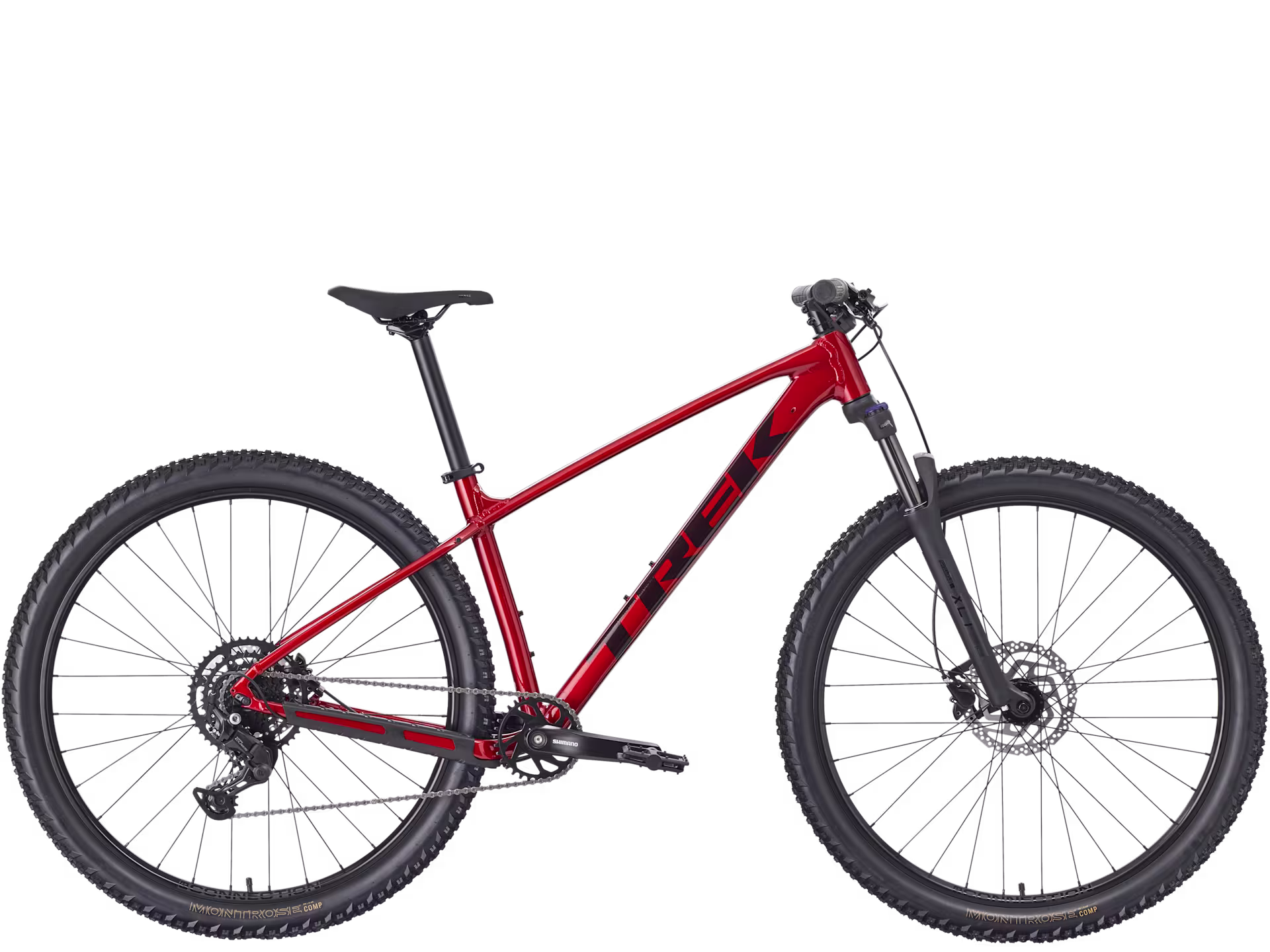

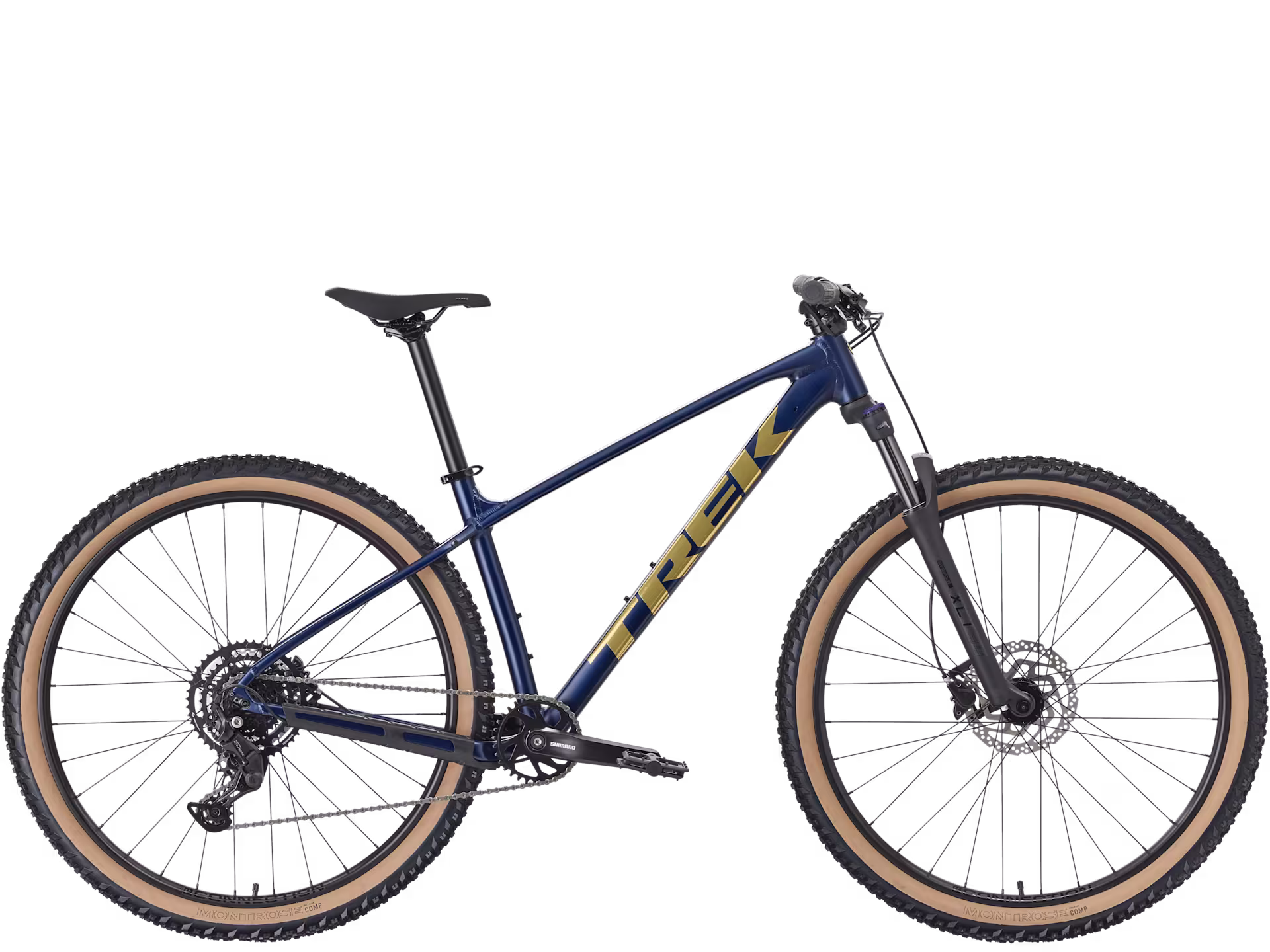

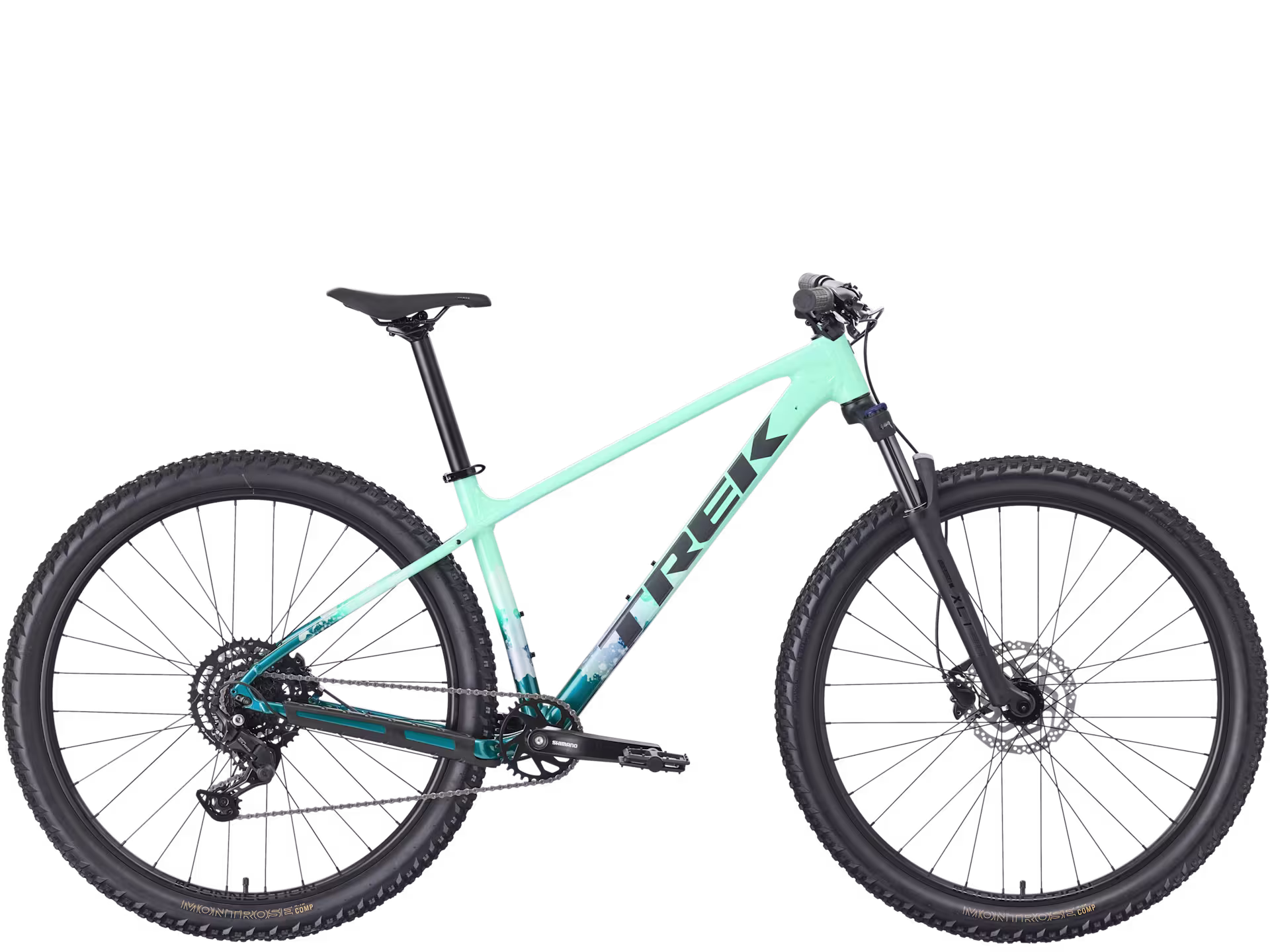

TREK Marlin 5 Gen 3 2026
New and More trail Focussed
everything you loved about marlin but with off road stability turned up with more tyre clearnace and a more agressive geometry package for those who want to push on rough terrain without breaking the bank
everything you loved about marlin but with off road stability turned up with more tyre clearnace and a more agressive geometry package for those who want to push on rough terrain without breaking the bank
Pricing
£625.00
| Model Year | 2026 |
|---|---|
| Options | XS (27.5) S (27.5) M (29) M/L (29) L (29) XL 29) XXL (29) |
| Frame | Alpha Silver Aluminium w/semi-integrated head tube, rack & mudguard mounts, G2 Geometry on 29ers |
| Forks | SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100 mm QR, 100 mm travel |
| Rear Derailleur | Shimano CUES U4000 |
| Shifters | Shimano U4000, 9-speed |
| Chainset | Prowheel C10Y-NW, 30T steel narrow-wide ring |
| Bottom Bracket | VP BC73, 73 mm, threaded cartridge |
| Freewheel | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Headset | 1-1/8" threadless, semi-integrated, semi-cartridge bearings |
| Stem | Bontrager Elite, 31.8mm, 7-degree, Blendr compatible |
| Handlebars | Bontrager alloy, 31.8 mm, 15 mm rise |
| Front Brake | Shimano Mt200 hydraulic disc |
| Rear Brake | Shimano Mt200 hydraulic disc |
| Rims | Bontrager AT-650 32-hole double-walled |
| Front Hub | Formula DC20 alloy |
| Rear Hub | Formula DC22 alloy |
| Tyres | Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 2.35" width |
| Saddle | Bontrager Evoke 1.5 |
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset |
| Pedals | Wellgo nylon platform |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification and availablity before buying.
