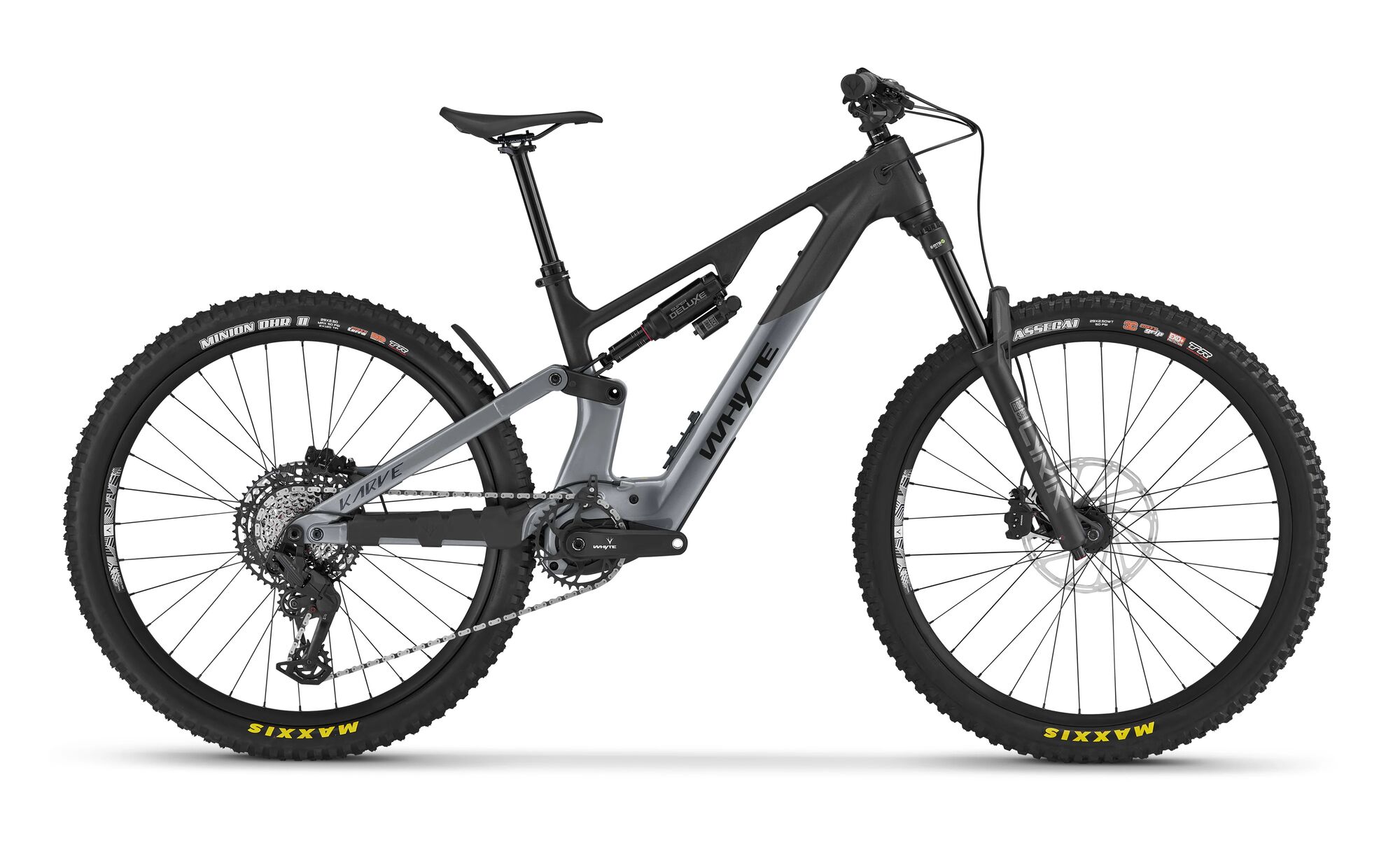

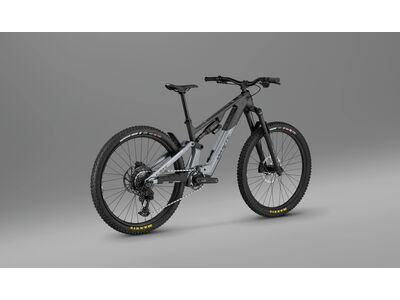

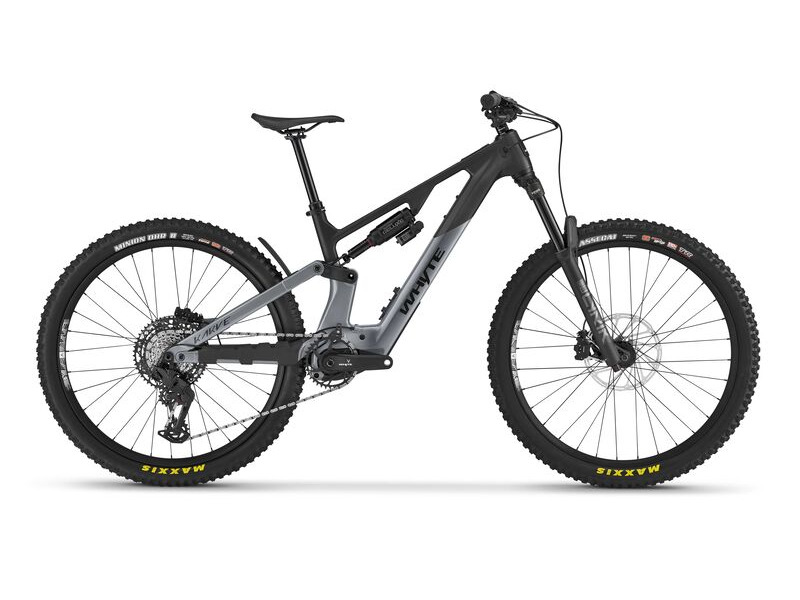

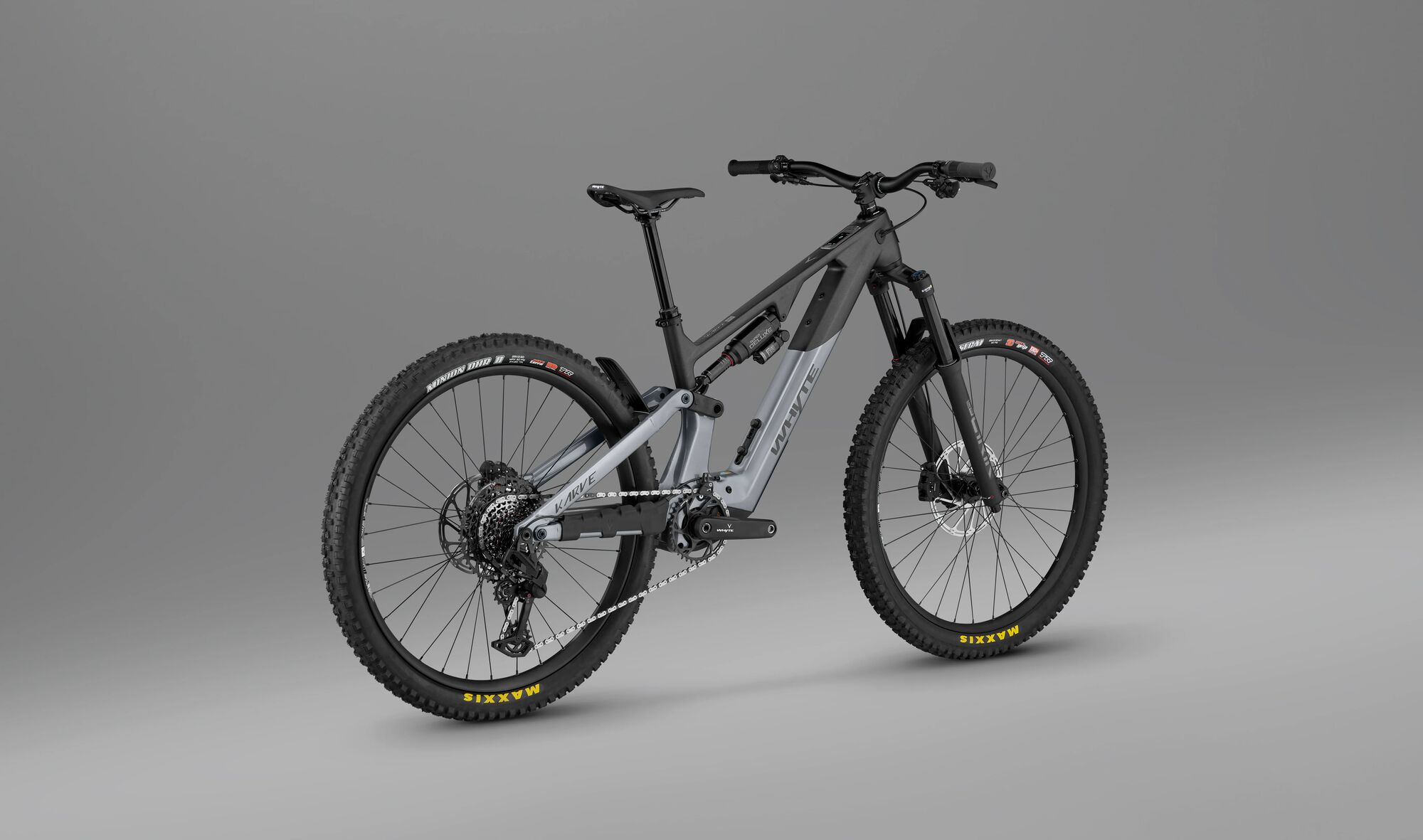

WHYTE Karve RS 2027
Powerful, agile and balanced, Karve RS is a thrilling all-rounder that pairs proportional geometry with size-specific tuning to deliver balanced, assured handling for every rider. Confident and highly capable, it- ?s built for those who expect more control, composure and consistency from every ride. From steep descents to technical climbs and demanding back-country trails, it delivers the stability and precision to stay on line when it matters. Controlled handling, strong, responsive support and a planted feel let you ride with commitment and carry speed with confidence. Designed, developed and proven in the UK, Karve RS is built to be dependable, resilient and ready to perform all year-round. All so you can turn every ride up to 11 - " and keep it there.
Pricing
£5650.00
| Model Year | 2027 |
|---|---|
| Options | Small Medium Large Extra Large |
| Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts |
| Style | Ideal for... Enthusiast riders who want a light, mid-travel full-power enduro-capable eMTB that delivers the very best handling and performance possible for maximum thrills - " everywhere. |
| Forks | RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth |
| Rear Derailleur | SRAM Eagle 90 T-Type mechanical, 12 speed |
| Shifters | SRAM Eagle 70, 12 speed |
| Chainset | Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type |
| Bottom Bracket | DJI |
| Freewheel | SRAM XS 1270, T-Type, 10-52T, 12 speed |
| Chain | SRAM Eagle 70, 12 speed |
| Headset | FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings |
| Handlebars | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| Front Brake | SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor |
| Rear Brake | SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt Centreline rotor |
| Rims | Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rear |
| Front Hub | Alloy, double sealed cartridge bearings, 15mm x 110mm thru axle, 32 hole |
| Rear Hub | Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub |
| Spokes | 14g stainless black, brass nipples |
| Tyres | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
| Saddle | Whyte Custom |
| Seatpost | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
| Rear Shock | RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte |
| Motor | Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. |
| Battery & Charger | Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor. Charger 4A (230V) |
| Display | Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips. |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification and availablity before buying.
