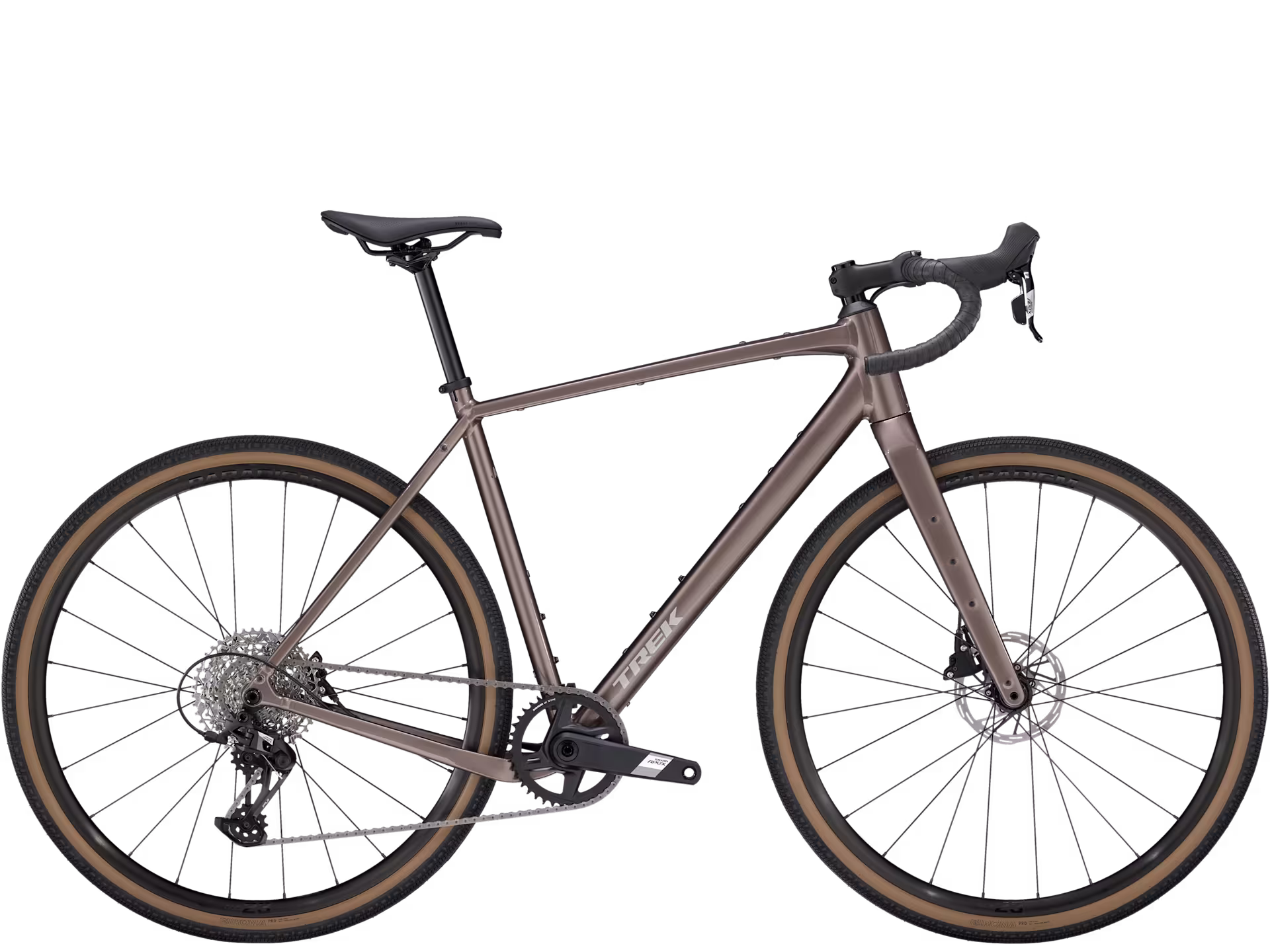

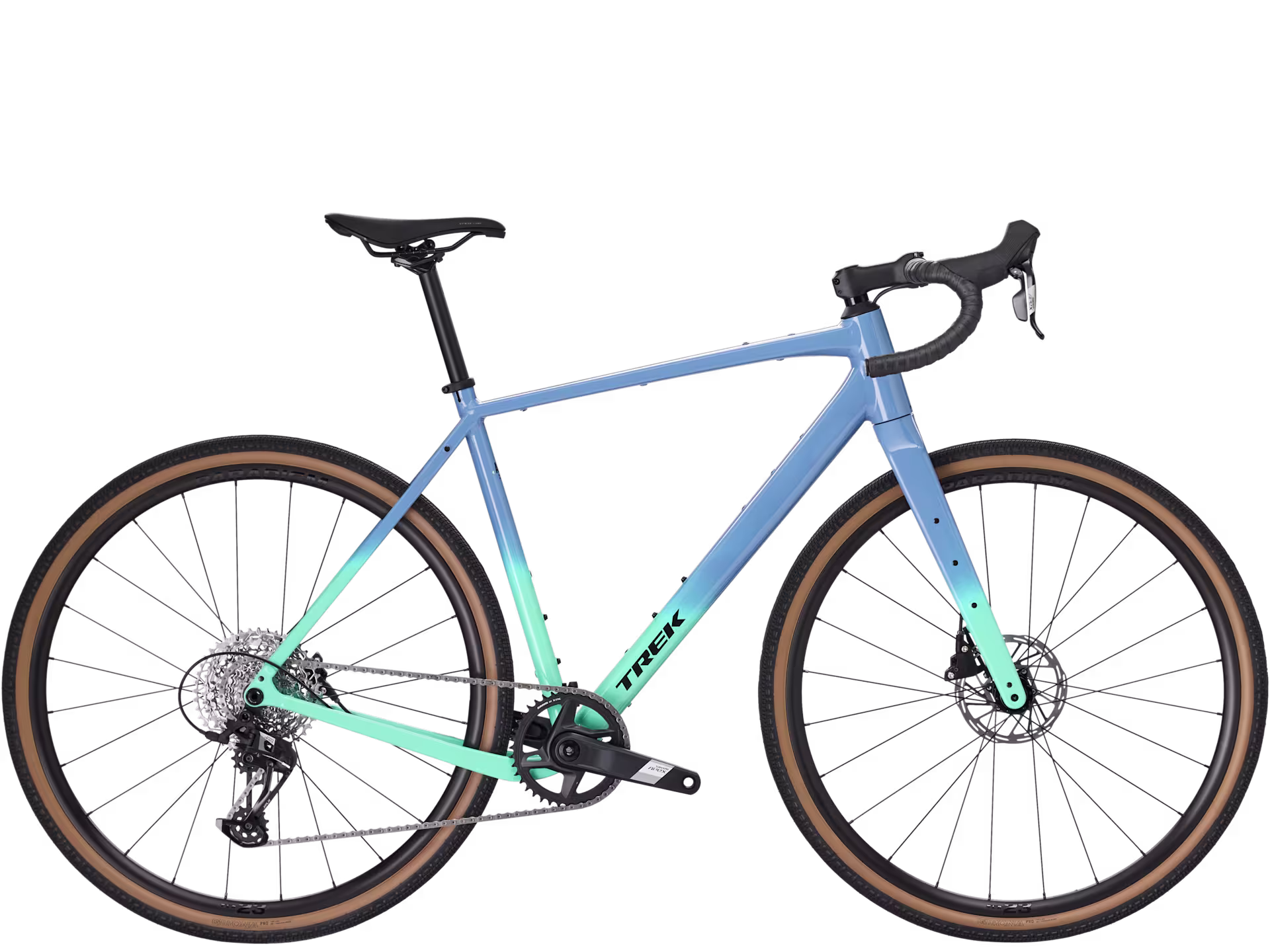

The Checkpoint ALR 5 is an aluminium gravel bike built for venturing anywhere. It pairs modern endurance geometry with a carbon fork for road-smoothing comfort, while 50 mm of tyre clearance gives you room for tons of grip. It comes equipped with SRAM Apex XPLR 12-speed shifting, hydraulic disc brakes, Tubeless Ready Bontrager Paradigm wheels and loads of mounts for bags and gear.
Pricing
£1700.00
Options | XS S 49cm M 52-54cm ML 56cm L 58cm XL 61 cm |
---|---|
Frame | 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle |
Forks | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
Rear Derailleur | SRAM Apex XPLR, 44T max cog |
Shifters | SRAM Apex, 12 speed |
Chainset | SRAM Apex 1, 40T, DUB Wide |
Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
Freewheel | SRAM XPLR PG-1231, 11-44, 12-speed |
Chain | SRAM Apex, 12-speed |
Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree,(70-100mm) |
Handlebars | Bontrager Elite Gravel, alloy, (40-46cm width) |
Front Brake | SRAM Apex D1 hydraulic disc, flat mount SRAM Paceline, rounded, CentreLock, 160 mm |
Rear Brake | SRAM Apex D1 hydraulic disc, flat mount SRAM Paceline, rounded, CentreLock, 160 mm |
Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
Front Hub | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle |
Rear Hub | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
Tyres | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
Saddle | Verse Short Comp, steel rails, 145 mm width |
Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
Grips | Bontrager Supertack Perf tape |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification and availablity before buying.
